Fuel sending unit — This complete fuel sending unit is submerged inside the fuel tank. The sending unit and float is what gives the dash fuel gauge the proper information as to fuel level in the tank. The fuel pump is connected to the sending unit but can be replaced separately in most cases. To test the fuel pump and the sending unit the wires at the top of the fuel tank must be checked for power and ground.

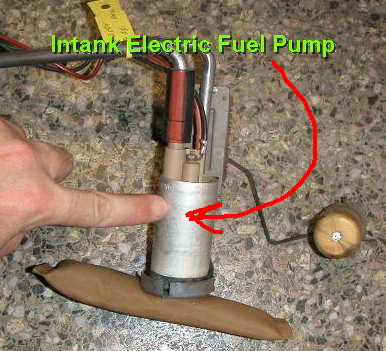

This type of pump is located inside the fuel tank itself

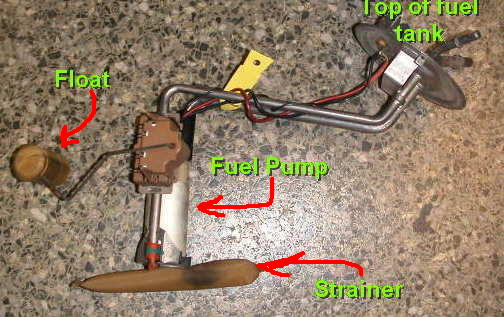

This is called the fuel sending unit (as one piece)

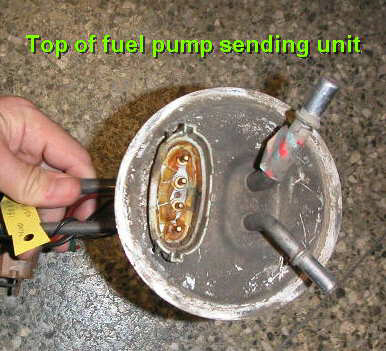

This is what is visible from the top of the fuel tank. The electrical wires and the fuel lines connect here.
